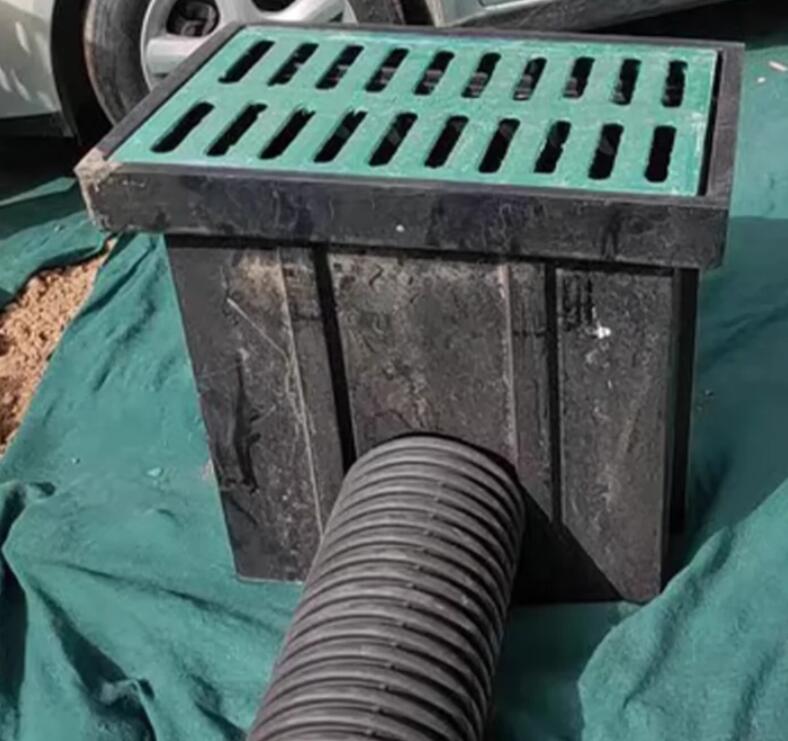

Plastic manhole with Composite cover for Rainwater collection and infiltration

The ‌Plastic Infiltration Well‌ is a drainage accessory structure that combines the existing urban rainwater and sewage combined drainage method in my country, and is mainly used to collect rainwater from roads, green spaces, etc. It has the functions of infiltration, silt collection, diversion, and overflow. It enters the well body through the wellhead, is filtered and processed by the sewage interception basket, and then is collected, infiltrated, and utilized.

The design of plastic infiltration manhole takes environmental protection and practicality into consideration, aiming to effectively collect and utilize rainwater resources while reducing the burden on urban drainage systems. This type of manhole is usually made of Plastic or SMC materials, which are corrosion-resistant, have a long service life, and are energy-saving and material-saving. It is an environmentally friendly building material product. The composition of plastic infiltration wells includes  covers and manhole chamber , which together ensure the functionality and durability of the wells.

The Manhole material is made of HDPE material, and it is formed in one piece by injection molding machine.

Rainwater infiltration Wells are part of the construction of  cities, which can quickly, easily and safely penetrate rainwater into the ground, fully replenish groundwater, and effectively avoid ground water and urban waterlogging. It Can also do drainage inspection Wells, etc.

The rainwater infiltration well is equipped with a sewage interception basket inside, which can intercept and precipitate sand, leaves and other garbage in the rainwater. It is also convenient to clean up, and you can directly take out the basket and dump it. The product is made of polymer materials and formed as a whole in one go. Holes can be opened evenly around the four sides to facilitate infiltration and drainage. Quickly, conveniently and safely infiltrate rainwater into the ground to replenish groundwater.

Plastic manholes are light in weight, and it is easy to be transported  and installed, It has reliable performance, strong adaptability and a full range of varieties. The height can be customized, holes can be drilled on the well body to meet all the needs of engineering installation.

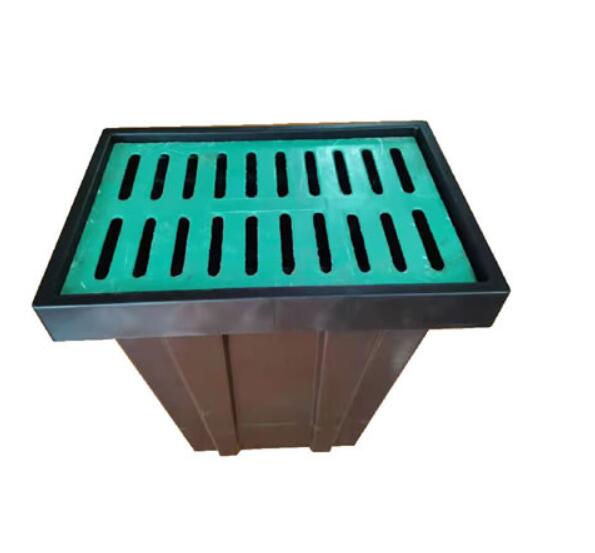

The plastic infiltration well components are made of thermoplastic plastic in one-step rotational molding, equipped with rainwater grates (Cover), sewage interception baskets and Chamber. Our Cover is usually made by composite material.

The size of plastic manhole with cover can be customized, so using plastic wells will save more materials and the corresponding use cost will be lower.

Their main application areas include parks, communities, and road green belts, as well as being used alone in ancient trees and grass-planted ditches to provide auxiliary water sources for mountain fruit trees. The design and material selection of this well make it an important part of environmental protection projects, helping to improve the ecological environment quality of the city.

Square Type:

China Manufacturer Plastic Rainwater Infiltration Well
